Eldema J-lites are permanent mounting indicators with built in long life T-1 lamps. Completely sealed to resist moisture and dust .meet the applicable requirements of MIL-l-6723 and MIL-L-3661.
They provide simple trouble free installation, mounting from the front of the panel. Two insulated lead wires are brought out for simple circuit connection.

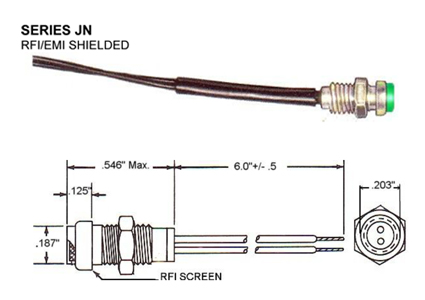

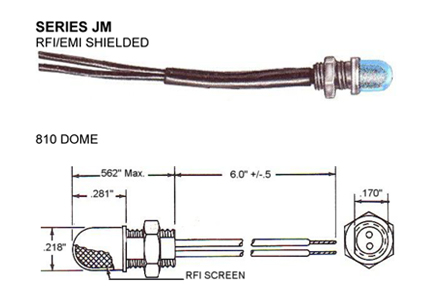

Both military specification versions and commercial styles with a choice of body styles, lens shapes and colors are available. Series JM and JN units are RFI/EMI shielded. Shielding is grounded to the panel by the mounting hardware, forming an effective shield.
Panel mounting
Recommended panel mounting hole for military-type D-hole mounting viewed
From the front panel. May be used only with units that have flat on housing
(series JK and JM only)
Incandescent
Lamps
-----------------------------------------------------------------------------------
Incandescent
lamps for 3 volt through 28 volts applications are available.

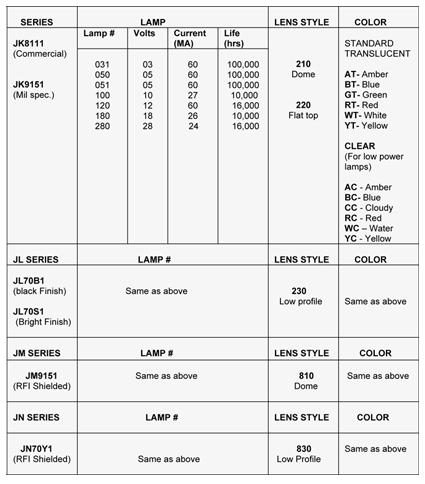

Specifications listed in the lamp table are the manufacture’s
rating and subject
to the manufacture’s tolerances. Incandescent lamps are
usually used with translucent lens colors.
Lens Shape & Color
------------------------------------------------------------------------------------
J-Series

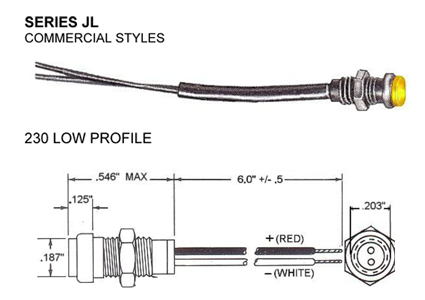

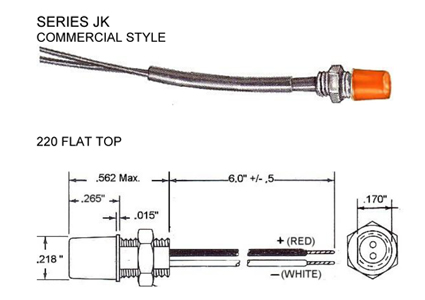

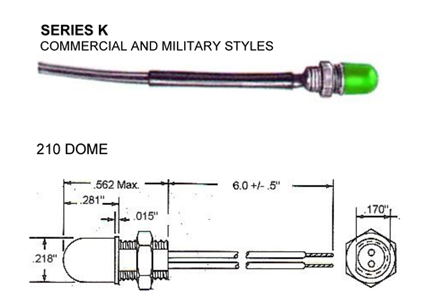

indicator lights offer a choice of dome, flat top or low profile
lens shapes
on a full range of clear and translucent colors. Flat top or low
profile lens shapes
may not be stamped.
Clear or translucent colors may be used with all incandescent
lamps listed.
Wire Leads
---------------------------------------------------------------------------------------
All
J-Lites are supplied with standard 6” insulated wire leads. Special
lead lengths
are available. Specify in detail when ordering.
Military J-Lites
--------------------------------------------------------------------------------------

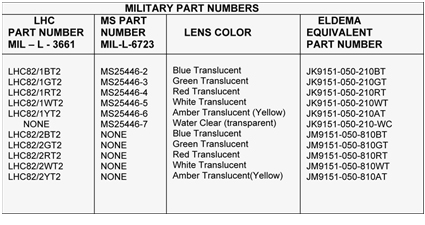

Refer to the table below for military part number listings. MIL-L-3661, revision B has been expanded to include both RFI/EMI shielded and none-shielded indicator lights and LHC type designations assigned. MIL-L-661 and MIL-L-6723.
*Specifications subjet to change without notice.
